SMDL
A high-precision 28X digital level

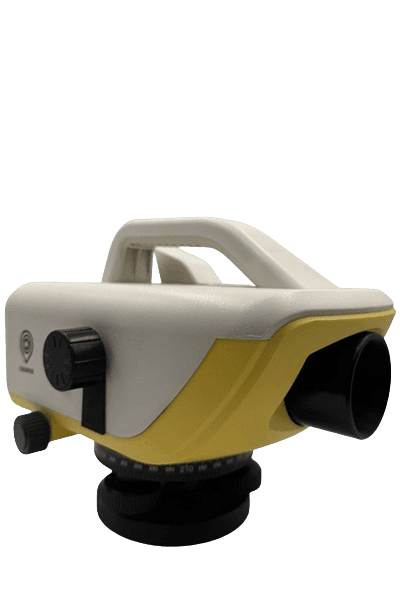

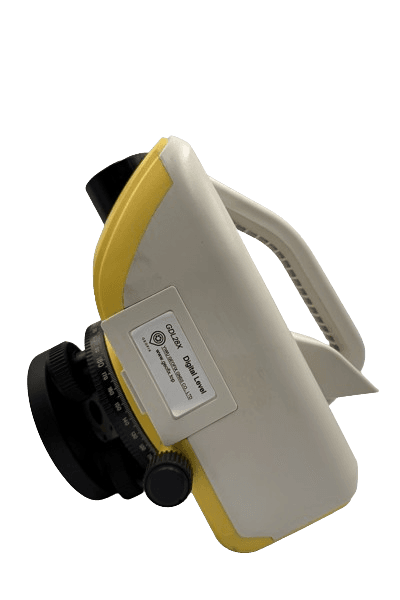

The SMDL 28X is a compact and high-performance digital level designed to simplify elevation and distance measurements with exceptional accuracy. With 28X magnification and a 40 mm objective aperture, it delivers a standard deviation of 1.5 mm over 1 km double-run leveling.
The SMDL 28X is a compact and high-performance digital level designed to simplify elevation and distance measurements with exceptional accuracy. With 28X magnification and a 40 mm objective aperture, it delivers a standard deviation of 1.5 mm over 1 km double-run leveling.
This instrument enables automated measurements with a response time of just 3 seconds and supports working distances up to 100 meters. It offers digital accuracy of 1.5 mm in height and 0.01 m in distance, with a built-in RS-232C interface for data transfer in professional field applications.
The SMDL 28X includes a dual power system supporting either a rechargeable 6V battery or four AA batteries. It delivers up to 38 hours of continuous operation and operates reliably in temperatures ranging from -20°C to +50°C. Built for durability and portability, it is well suited for surveyors who demand speed, precision, and ease of use in demanding environments.
