E80-M60
High-precision GNSS RTK system
The E80 + M60 GNSS RTK System is a powerful survey-grade positioning solution designed for reliable, real-time field performance. With the E80 operating as a robust base station and the M60 as a dynamic rover, the system supports 1408-channel, full-constellation tracking including GPS, GLONASS, BeiDou, Galileo, and QZSS.
The E80 + M60 GNSS RTK System is a powerful survey-grade positioning solution designed for reliable, real-time field performance. With the E80 operating as a robust base station and the M60 as a dynamic rover, the system supports 1408-channel, full-constellation tracking including GPS, GLONASS, BeiDou, Galileo, and QZSS.
Equipped with a 5-watt internal UHF radio, the system transmits RTK corrections up to 15 kilometers under optimal conditions. The E80 base features a Linux operating system, 8 GB internal memory, voice broadcast functions, and advanced tilt compensation via e-bubble sensors. Its rugged design meets IP67 standards and withstands 2-meter pole drops, ensuring stable operation even in harsh environments.

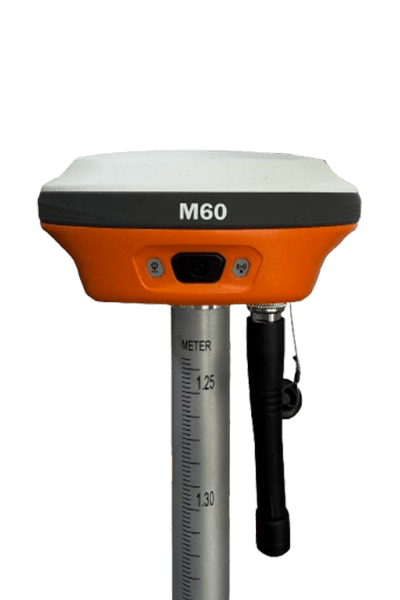

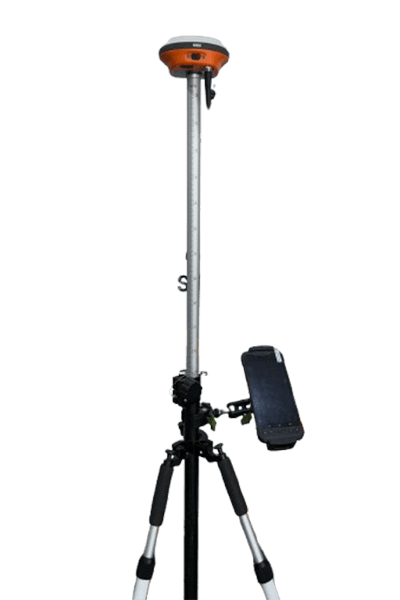

The M60 rover is optimized for portability and performance, featuring fast startup, Bluetooth 5.0, Wi-Fi, and multiple datalink options. It seamlessly receives corrections via UHF or 4G LTE and delivers centimeter-level accuracy with rapid convergence. Together, the E80 and M60 provide a complete RTK solution engineered for precision, durability, and workflow efficiency in surveying, mapping, and construction applications.
